| Type | I/P Supply | AMPS(A) | Power (W) | RPM | Airflow (CMH) | Airflow (CFM) | Static - PR(mm-wc) | dBA | CAP. μf | ADMISSIBLE AMBIENT TEMP | Weight (KG) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 9EC 1BT | 230V , Single Phase, 50 Hz | 0.65 | 160 | 2500 | 450 | 265 | 40 | 70 | 4.0 | 60 | 4.50 |
Kunjmart is one of the well-recognized Single Inlet Forward Curved Blower (9EC 1BT) supplier and exporter in India. Our SISW 9EC 1BT blowers are extremely durable and efficient. Thery are highly appreciated for their reliable performance. We offer Single Inlet Forward Curved blowers in various shapes and sizes. Customer can also contact to get as per their required applications.
This Product has Power Supply of Single Phase with frequency of 50 Hz with Power consumption 160 Watt and 2500 RPM. This product is knows as the Single Inlet Forward Curved 9EC 1BT Blower. This used in the application where we need to blow air.
We request you to refer following points for your reference purpose.

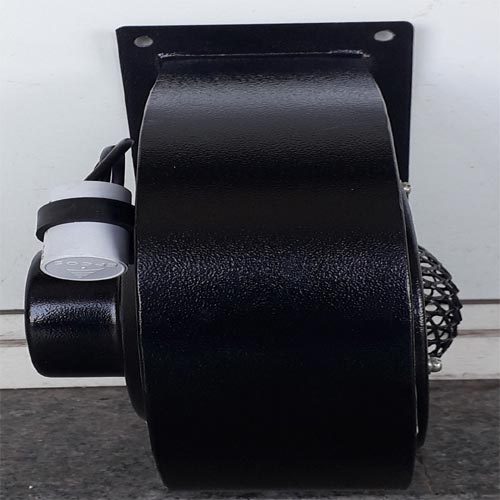

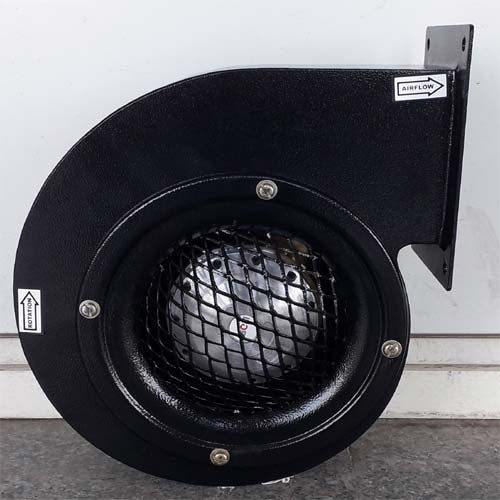

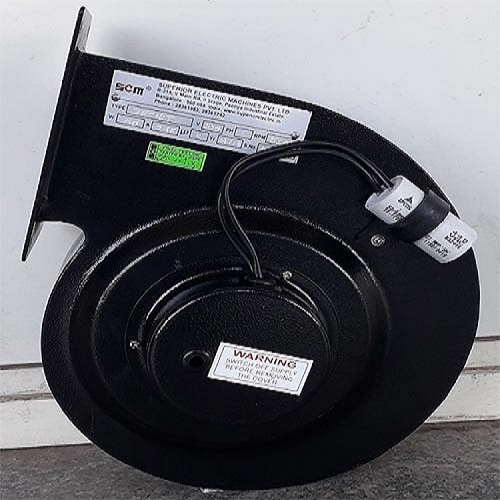

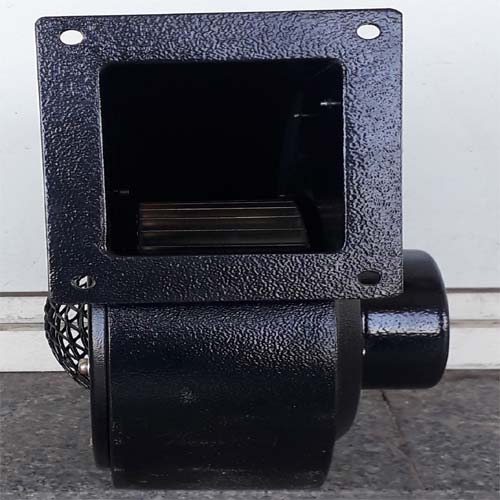

Point 1 : Product Photographs Shown the Real Image of The Single Inlet Blower Model Number 9EC 1BT For Brand of SEM

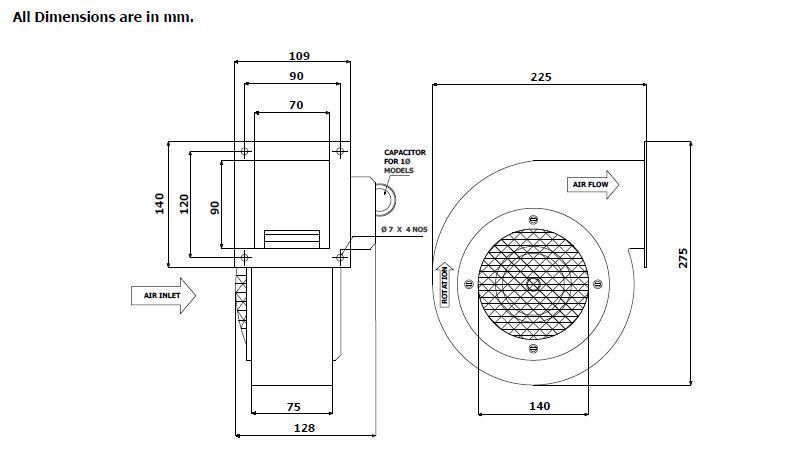

Point 2: Please Refer Drawing Which contains Dimensions of the Blowers.
Point 3 ; This Product has Power Supply Single Phase with frequency of 50 Hz
Point 4 : This Product has Power : 160 Watt, Speed : 2800 RPM
Point 5: Working Test Certificate Avilable With End User Name
Point 6 : Product Has One Year Warranty Against Manufacturing Defect
Point 7 : Please Consider The Rates Including Freight Charges
Point 8: We can use this material in many application for the cooling purpose. This product is specially designed for the application of Plastic Extruder Machinery, Pharma Machinery and many more
| Type | 9EC 1BT |
|---|---|
| I/P Supply | 230V , Single Phase, 50 Hz |
| AMPS(A) | 0.65 |
| WATTS(W) | 160 |
| RPM | 2500 |
| Airflow (CMH) | 450 |
| Airflow (CFM) | 265 |
| Static - PR(mm-wc) | 40 |
| dBA | 70 |
| CAP. μf | 4.0 |
| ADMISSIBLE AMBIENT TEMP | 60 |
| Weight (KG) | 4.50 |
We request you to refer following terms and conditions :
Point 1: Material will be dispatch within 2-10 days from the booking of order.
Point 2: Offer Price Rates Only For The Brand : SEM
Point 3: Freight Charges : Including Upto Door Delivery
